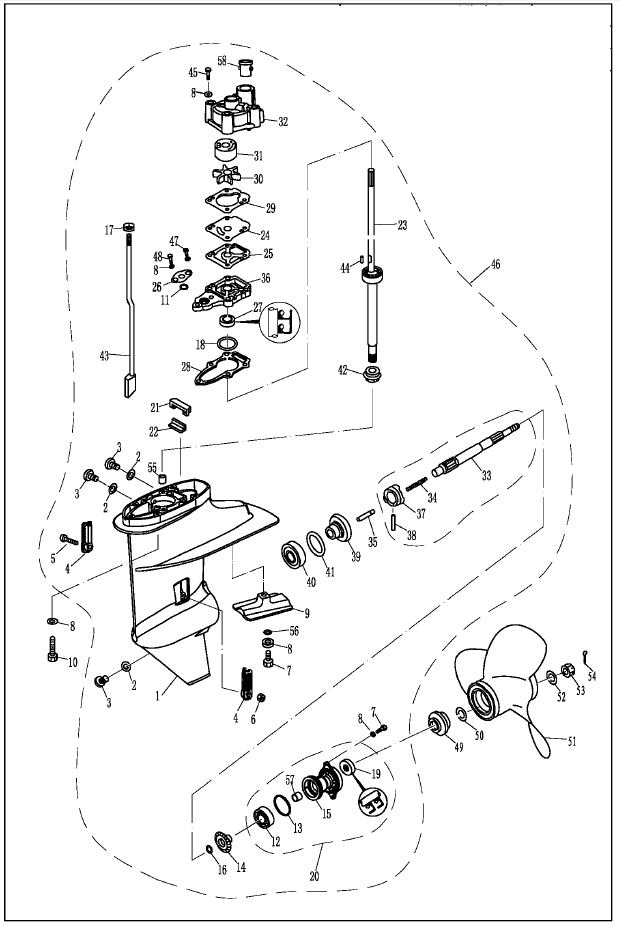

GEARBOX HOUSING & PROPELLER

GEARBOX HOUSING & PROPELLER

Ref. Code Product Name Avail. Price Quantity
1
F8-04000001
LOWER CASING
0
4
F8-04000017
WATER INLET
0
9
F8-04000018
ANODE
24
11
F2.6-03000009
O-RING
4
13
F8-04040002
O-RING
105
14
F8-04000014
GEAR,REVERSE
8
15
F8-04040001
COVER?LOWER CASING
0
16
F8-04000012
WASHER
10
18
F8-04000004-1
SHIM 0.10mm
0
19
F8-04040004
OIL SEAL
150
20
F8-04040000
COVER ASSY?LOWER CASING
9
21
F8-04000016
GASKET?WATER SEAL
0
22
F8-04000015
WATER SEAL
0
24
F8-04000007
OUTER PLATE
181
25
F8-04000006
GASKET?OUTER PLATE
206
26
F8-04000011
PLATE,O-RING
0
27
F8-04000101
OIL SEAL
161
28
F8-04000005
GASKET?WATER PUMP SEAT
75
29
F8-04000008
GASKET?OUTER PLATE
167
30
F8-04000200
IMPELLER
122
31
F8-04000010
INNER SHELL?WATER PUMP
278
32
F8-04000009
WATER PUMP
179
33
F8-04000301
SHAFT,PROPELLER
0
34
F8-04000302
SPRING,CLUTCH
0
35
F8-04000305
PIN?CLUTCH
0
36
F8-04000102
WATER PUMP SEAT
5
37
F8-04000303
CLUTCH,DOG
0
39
F8-04010000
GEAR,FORWARD
2
41
F8-04000012-1
SHIM 0.10mm
0
42
F8-04000003
PINION
5
43
F8-04030000(S)
CAM ASSY?SHIFT ROD(S)
0
44
F8-04000021
PIN,DOWER
178
46
F8-04000000
LOWER CASING ASSY(S)
2
49
F8-04000019
CUSHION?PROPELLER
50
50
F8-04000020
WASHER?PROPELLER SHAFT
47
51
F8-04050000
PROPELLER ASSY
78
53
F15-06000016
NUT,HEXAGON
61
57
F8-04040003
BEARING
0
58
F8-04000013
SEAL
176
